AppleWatch Tide(潮汐) 実装を妄想

はじめに

  • イカダでの釣行するとき、潮汐が重要みたいです。
  • 釣行に行く、三重県南伊勢町、愛知県知多市の2つで十分
  • 湾内では、気圧や風の影響がでるので大まかな値で十分。気にしません



参考にする潮位プログラム



C言語の準備

  • Mac上のWin11にMS-DOS Playerを使ってTurbo Cをインストールしてみました

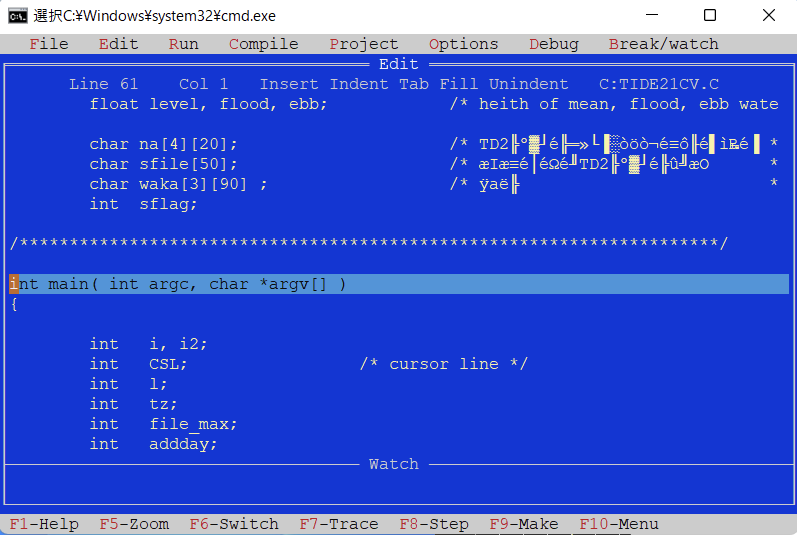

  • ヤッターと思いましたが。。。  日本語が「化けとるみ」たいです
    • 入手したTurbo Cですが、PC-98というNECのパソコン用みたいです。グーグルで調べたところ、「DOSBox-X」上でTurbo Cを使うと良いとのことでした
    • 階層としては、Mac  → Win11 → DOSBox-X → Turbo C となります
    • キーボードは Mac US   → win US  → win JP    → win JP となります。1つのキーボードでMacUS、WinUS、WinJPを切り替えれるものを以前作成してあり、とても役立っています。
    • dosbox-x.com

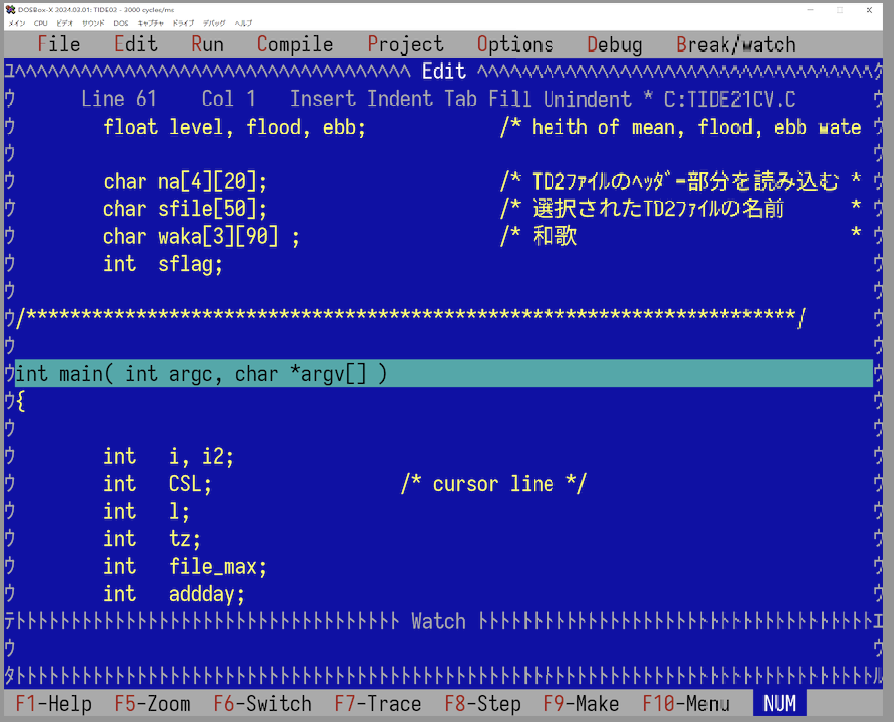

    • インストールしたところ、デフォルトで日本語が正しく表示されましたが、枠線が文字化けしています。PC-98用に設定すれば良いかと思いますが、大きな問題ではありません。そのまま使います。





  • コンパイルしましたらエラーだらけですーーー!

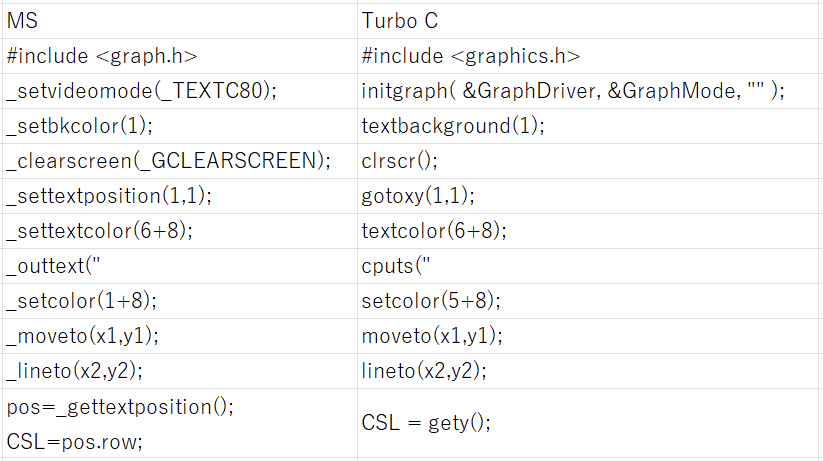

    • プログラムはマイクロソフト系のようです。テキスト画面とグラフィック画面の処理をTurbo C用に書き換えました。



  • 結果確認

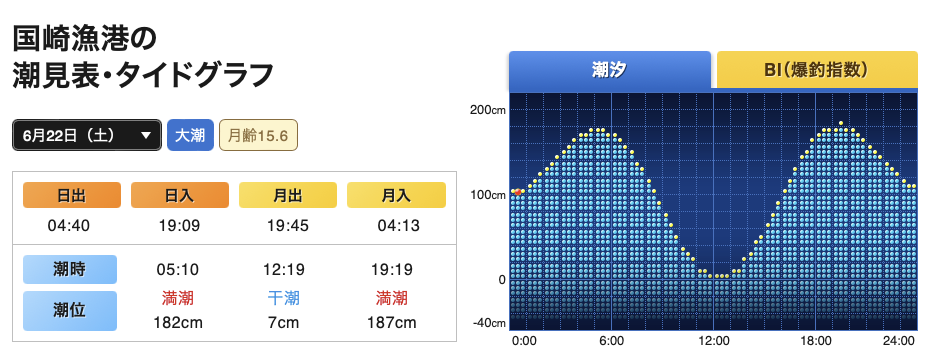

    • HPデータ

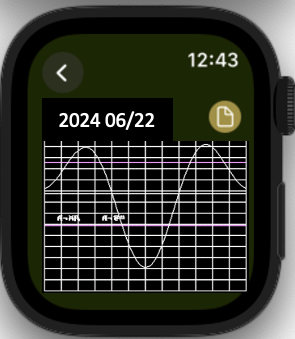

    • 今回作成したデータ





  • AppleWatchで動かす準備

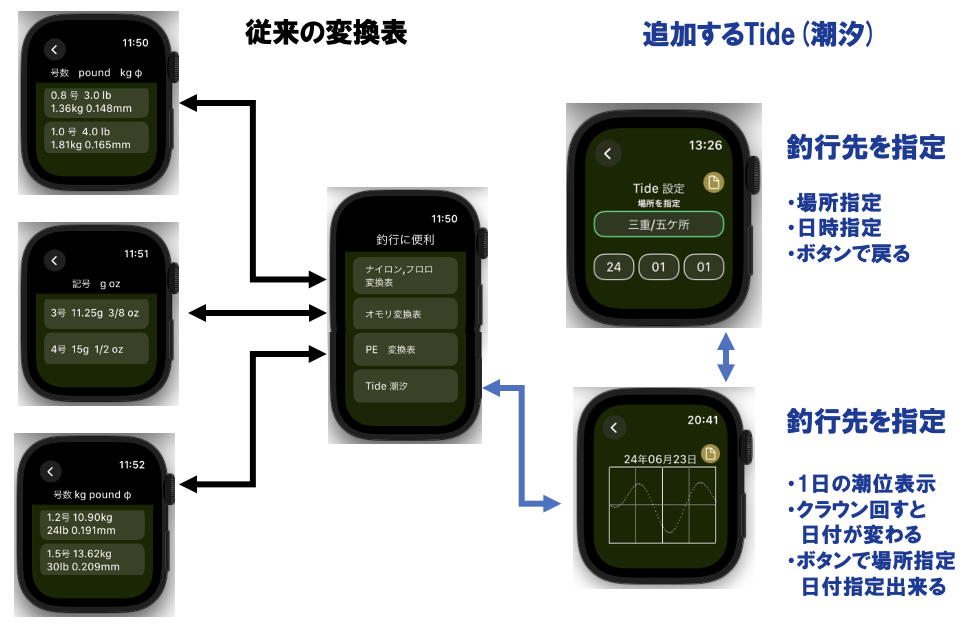

    • 釣行先を決めました
      • Picker("場所を指定", selection: $selectionValue) {

            /// 選択項目の一覧

            Text("静岡/舞阪").tag(0)

            Text("愛知/師崎").tag(1)

            Text("愛知/武豊").tag(2)

            Text("三重/五ケ所").tag(3)

            Text("三重/鳥羽").tag(4)

            Text("三重/的矢").tag(5)

            Text("三重/尾鷲").tag(6)

        }



    • DTフォルダーからデータをマイクロソフト エクセルで取り出しました。
      • let na = [["静岡/舞阪", 34.41, 137.37,  70],

                  ["愛知/師崎", 34.42, 136.59, 125],

                  ["愛知/武豊", 34.51 ,136.56 ,132],

                  ["三重/五ケ所",34.19, 136.40, 103],

                  ["三重/鳥羽", 34.29, 136.51, 120],

                  ["三重/的矢", 34.22, 136.52, 110],

                  ["三重/尾鷲", 34.04, 136.13, 104]

        ]

        let hr  = [

            [12.60,1.80,1.10,2.10,0.90,2.30,0.40,11.40,0.20,0.40,0.40,5.00,0.30,15.70,0.60,0.20,0.70,0.50,0.40,0.70,0.30,5.10,0.90,0.20,29.70,0.40,1.00,1.00,13.10,0.40,3.70,0.30,0.40,0.30,0.60,0.30,0.70,0.70,0.20,0.30,"静岡/舞阪"],

            [16.50,0.90,1.10,1.30,1.10,3.80,0.80,17.70,0.40,0.80,0.40,7.70,0.50,23.70,0.30,0.40,1.30,0.40,0.80,1.50,1.90,10.30,1.60,0.50,57.40,0.50,2.00,1.80,26.70,0.10,7.60,0.30,0.40,1.20,0.50,0.40,0.20,0.20,0.20,0.20,"愛知/師崎"],

            [15.50,0.40,0.40,1.60,0.40,3.40,0.60,18.00,0.40,1.20,0.50,7.30,0.40,24.00,0.30,0.30,1.30,0.60,0.60,0.90,2.00,10.50,2.00,0.30,60.50,1.10,1.80,1.40,28.50,0.40,8.00,0.40,0.80,1.30,0.90,0.60,0.30,0.10,0.30,0.50,"愛知/武豊"],

            [13.00,0.00,0.00,0.00,0.00,0.00,0.00,17.00,0.00,0.00,0.00,6.70,0.00,20.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,45.00,0.00,0.00,0.00,21.00,0.00,5.70,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,"三重/五ケ所"],

            [13.10,1.80,1.40,1.20,0.70,3.50,0.70,17.40,0.40,1.00,0.50,7.50,0.60,23.30,0.20,0.30,1.40,0.30,0.80,1.20,1.70,9.30,1.90,0.20,55.50,0.60,1.80,1.70,25.50,0.30,7.20,0.20,0.70,0.90,0.60,0.50,0.20,0.20,0.10,0.10,"三重/鳥羽"],

            [13.00,0.00,0.00,0.00,0.00,0.00,0.00,17.00,0.00,0.00,0.00,7.30,0.00,22.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,44.00,0.00,0.00,0.00,20.00,0.00,5.40,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,0.00,"三重/的矢"],

            [12.20,1.70,0.70,0.40,0.50,3.50,0.70,17.00,0.20,0.50,0.40,7.10,0.50,22.20,0.30,0.30,1.20,0.20,0.70,1.10,1.10,7.80,1.50,0.10,44.10,0.40,1.40,1.30,19.80,0.10,5.50,0.10,0.00,0.50,0.10,0.20,0.10,0.10,0.00,0.00,"三重/尾鷲",]

        ]

        let pl =  [

            [161.20,1.80,33.80,20.2,177.90,164.1,157.60,173.5,330.70,195.1,164.40,186.8,339.50,194,228.40,144.8,214.80,31.8,226.20,175.7,218.60,176.2,178.30,159.6,179.60,177.4,187.80,176,204.50,68,196.00,43.5,264.30,178.5,268.10,343.1,264.00,289.6,274.90,302.1,"静岡/舞阪"],

            [136.50,0.90,68.70,16.9,2.70,155.7,163.00,165.5,231.70,182.8,199.80,183.6,335.10,187.1,249.40,151.3,204.80,263.7,218.10,167.6,194.30,170.7,171.90,195.1,176.50,179.7,188.70,195.2,203.30,65.3,199.10,19.5,251.60,201.1,296.10,54.2,136.50,125.3,180.20,195,"愛知/師崎"],

            [140.70,218.7,144.90,46.8,69.10,158.8,152.40,167.4,202.90,131.1,165.80,186.4,320.40,188,95.90,140.4,220.80,314,240.60,181.4,205.40,179.9,175.20,103.4,179.60,165.9,167.80,198.7,206.40,5.6,198.30,9.4,305.80,186.3,289.70,17.2,305.40,280.1,211.30,217.3,"愛知/武豊"],

            [166.00,0,0.00,0,0.00,0,0.00,165,0.00,0,0.00,186,0.00,186,0.00,0,0.00,0,0.00,0,000.00,0,00.00,0,166.00,0,000.00,0,190.00,0,190.00,0,0.00,0,0.00,0,000.00,0,0.00,0,"三重/五ケ所"],

            [159.60,342.4,65.80,30.5,158.80,156.4,155.10,167.4,182.10,229.9,165.60,185.6,22.00,188.2,137.70,160.8,213.60,284.4,223.30,180,191.80,176.2,178.90,328.9,179.50,166.7,179.50,205.7,205.90,21.6,202.20,352,300.00,197.6,292.80,42.3,19.40,52.9,285.50,319.2,"三重/鳥羽"],

            [160.00,0,0.00,0,0.00,0,0.00,164,0.00,0,0.00,188,0.00,188,0.00,0,0.00,0,0.00,0,000.00,0,00.00,0,171.00,0,000.00,0,199.00,0,199.00,0,0.00,0,0.00,0,000.00,0,0.00,0,"三重/的矢"],

            [161.80,345.3,54.20,22.3,167.60,153.8,155.50,165.2,187.00,202.3,175.80,182.5,40.60,185.5,211.30,165.1,204.60,263.5,227.30,162.4,167.20,165.7,165.20,78.1,170.30,176.4,179.10,192.3,194.50,179.5,189.70,78.5,346.10,170.6,254.20,45,54.30,40.8,181.80,229.8,"三重/尾鷲",]

        ]



  • ソフトの移行

    • 元になる「int main( int argc, char *argv[] )」は次のようにしました
      • C言語で作られており、クラス化してないので見にくいです。
      • 暫くはデータの変化を順番に確認し、問題がなければ改良していきたいと考えて行きます。
      • 課題は沢山有ります
        • 配列の初期化 ー> addで配列追加
        • 余分な「let」
        • IntとDoubleの使い分け
        • クラス化してデータの影響範囲指定する
      •     func tideLineSet() -> [Double] {



                let year = 2024

                let month = 6

                let day = 25

                let z =  serial_z(yr: year, mh:month, dy:24 )     /* 天文計算用通日 */

                let arg1 = z + 6.5;

                let arg2 = floor(arg1/7.0);

                let wday = (Int)(arg1 - arg2*7.0);

                let l = (Int)((year+3)/4)-500;

                let tz = serial_day(month:month, day:day) + l   /* 潮汐計算用通日 */

                /*  太陽、月の軌道要素 */

                let re = mean_longitudes(year:year, tz:tz )

                /*  基本となる分潮の天文因数 及び天文引数  */

                var f0 = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0]

                var u0 = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0]

                var v = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 ,19.0, 20.0, 21.0, 22.0, 23.0, 24.0, 25.0, 26.0, 27.0, 28.0 ,29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0, 37.0, 38.0 ,39.0]

                var u = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 ,19.0, 20.0, 21.0, 22.0, 23.0, 24.0, 25.0, 26.0, 27.0, 28.0 ,29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0, 37.0, 38.0 ,39.0]

                var f = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 ,19.0, 20.0, 21.0, 22.0, 23.0, 24.0, 25.0, 26.0, 27.0, 28.0 ,29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0, 37.0, 38.0 ,39.0]

                var nc = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 ,19.0, 20.0, 21.0, 22.0, 23.0, 24.0, 25.0, 26.0, 27.0, 28.0 ,29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0, 37.0, 38.0 ,39.0]

                var ags = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 ,19.0, 20.0, 21.0, 22.0, 23.0, 24.0, 25.0, 26.0, 27.0, 28.0 ,29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0, 37.0, 38.0 ,39.0]

                var vl = [0.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0 ,9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 ,19.0, 20.0, 21.0, 22.0, 23.0, 24.0, 25.0, 26.0, 27.0, 28.0 ,29.0, 30.0, 31.0, 32.0, 33.0, 34.0, 35.0, 36.0, 37.0, 38.0 ,39.0]

                /*  基本となる分潮の天文因数 及び天文引数  */

                var ysf0 = argument_f0( p:re.p, n:re.n, ff: &f0)

                var ysu0 = argument_u0( p:re.p, n:re.n, ff: &u0)

                let ydv0 = argument_v1( s:re.s, h:re.h, p:re.p, ff: &v)

                let ys_u = argument_u1( u0: &u0, u: &u )

                /*  グリニッチに於ける午前零時の値            */

                let ysvu = argument_vu( v: &v, u: &u )

                /*   天文因数 f  */

                let ysf1 = argument_f1( f0: &f0, f: &f )

                /* 分潮の波数 */

                let ysnc = cycle_numbe( nc: &nc )

                /*  分潮の角速度 */

                let ysag = angular_speed( ags: &ags )

                /*   天文引数 (V0+U)l  観測地の帯域時午前零時の値に変換  */

                let latAy = na[selectionValue][1] as! Double

                let lngAy = na[selectionValue][2] as! Double



                let lat = dg2dc( latAy )

                let lng = dg2dc( lngAy )

                let zt = floor(( Double( lng ) + 7.5) / 15.0) * 15.0

                let ysTn = tenbunHiki( vl: &vl, v: &v , nc: &nc, ags: &ags , zt:zt, lng:lng)



                let level = 1

                var hr2 = hr[selectionValue]

                var pl2 = pl[selectionValue]



                var tide2 = tideXY

                let ysti = tidegraph(level:1, f:&f, hr:&hr2, vl:&vl, ags:&ags, pl:&pl2 ,tideXY:&tide2 )

                return(tide2)

            }

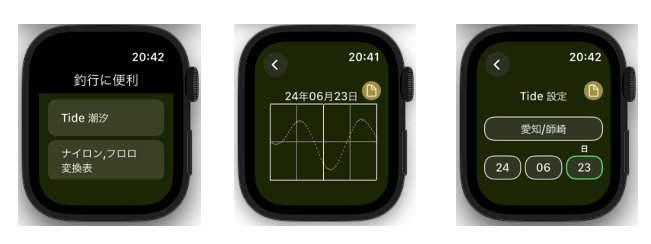

    • 取りあえず移行してみました。実務での使い方を妄想し、少しづつ詰めて行きます
      • デフォルト日付は、その日とする
      • 場所は最後に実施した場所とする
      • グラフを24時間アナログ表記してみる
      • など色々と妄想してみます。





思い

  • 使うとき時間をみてグラフを確認します
    • グラフ上に時刻の目印がある便利かな?
    • 24時間時計にグラフを書くのも良いかも?

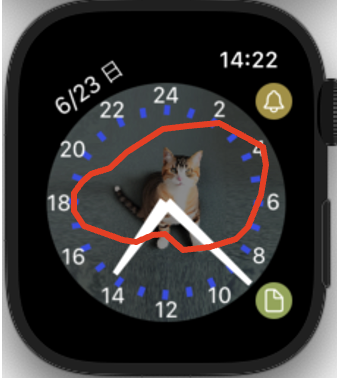

  •  完成予想図               アナログ時計に付けるのは如何?





参考書







ここまで読んでいただき、ありがとうございます。

次回は、AppleWatchに載せるためのデザインを報告します
